Capabilites

Weight || Size || Volume

Light Weight OEM Castings CF8M – 5 gram & 8 gram

Large Volume Suction Body Casting CF8M – 138600 cm3

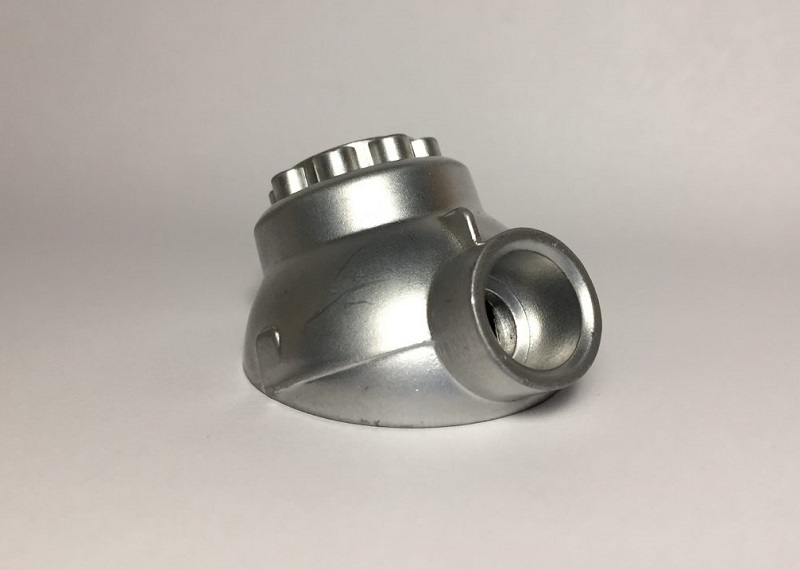

Small Volume Pump Casting CF8 – 0.42 cm3

Aluminium Castings requiring minimal machining

ICAST converted a 4 part fabrication into a single piece casting reducing 40% of the cost requiring way less machining operations. We also cast components with the following minimum Wall Thickness : || Copper Alloys 0.035 ” || Ductile Iron 0.035 ” || Aluminium 0.040 ” || 300 & 400 Series Stainless 0.040 ” || Cobalt Chrome 0.040 ” || Carbon Steel 0.050 ”

Tool Steel Casting

We provide custom, precision, high-strength, tool steel and alloy steel near-net-shape castings utilized for trimming and forming on prototype, tryout and production stamping dies.

Heavy Truck Copper Casting – Size : 315mm x 315mm x 325mm

ICAST is the leader in small, intricate, Precision Investment Castings. We specialize in castings that fit comfortably in the palm of your hand. In fact, our average cast part weight is under half a kg. While we do cast products up to 75kgs , we have done special purpose castings up-to 5gram a piece . Our size envelope is linear dimension of 600mm x 600mm x 600mm .

Small Automotive SS310 Castings – Size : 10mm x 10mm x 4mm

SURFACE FINISH AND COMPLEXITY : Although some of our castings are small, our capabilities are huge! Even the smallest casting that we manufacture has intricate details and features. Our niche focuses on castings with fine details with features such as blind holes and complex cored passages as well as exacting tolerances are met with stringent specifications. We achieve all of this while maintaining excellent surface finish of 60 – 125 RMS .

Heavy Weight Pump Body Casting CF8M – 65 kgs

We cast highly complex castings from a full range of melt alloys including Nickel, Cobalt, Aluminum and Copper based alloys as well as Stainless and Low Alloy Steels. Our precision investment castings are used across a broad range of critical applications in all key markets including:Aerospace, Power Generation, Medical, Industrial, Defense, and others.

Capabilites

Weight || Size || Volume

Light Weight OEM Castings CF8M – 5 gram & 8 gram

Large Volume Suction Body Casting CF8M – 138600 cm3

Small Volume Pump Casting CF8 – 0.42 cm3

Aluminium Castings requiring minimal machining

Tool Steel Casting

Heavy Truck Copper Casting – Size : 315mm x 315mm x 325mm

Small Automotive SS310 Castings – Size : 10mm x 10mm x 4mm

Heavy Weight Pump Body Casting CF8M – 65 kgs
